Dual Fuel

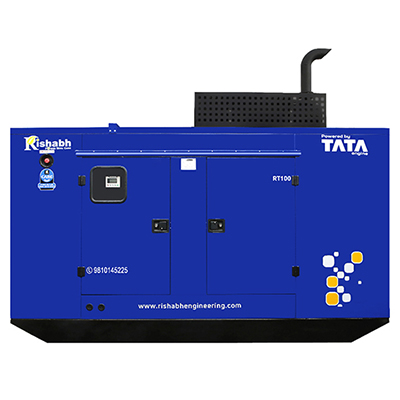

Industrial Generator : 100 Kva (TATA)

Standby Rating

The Standby Power rating is only applicable for emergency and standby applications where the generator set serves as the back up to the normal utility source. In installations served by unreliable utility sources (where outages last longer or occur more frequently), where operation is likely to exceed 200 hours per year, the prime power rating should be applied.The Standby Power rating is only applicable for emergency and standby applications where the generator set serves as the back up to the normal utility source.(as defined in ISO 8528-3)

Ratings and Performance Data
Engine Make & Model	TATA697TC
Alternator Manufacturer	Stamford
Generator Control Unit	Woodward EasyGen 600
Base Frame	Heavy Duty Fabricated Steel
Canopy/ Acoustic Enclosure	Procom Model ECON
Circuit Breaker Type/Rating	3 Pole MCB
Frequency	50 Hz
Engine RPM	1500

Output Ratings
Generator Set Model	RT‐100
Fuel ‐ HSD	Prime
380 ‐ 415V, 50Hz	100 kVA / 80 Kw
Ratings at 0.8 power factor

Standard Reference Conditions

Ratings in accordance with ISO 8528. All engine performance data based on the above mentioned maximum continuous ratings at Standard Reference Conditions 27°C Air Inlet Temp, 100 Mtrs. A.S.L. 30% relative humidity. Fuel Consumption data at full load with diesel fuel having specific gravity of 0.85 & confirming to BS2869: 1998, Class A2
